iCheck Fluoro
iCheck™ Fluoro is a state-of-the-art portable fluorometer. It determines vitamin A quantitatively in food and biological fluids. Using innovative technology it measures the fluorescence of vitamin A in the sample. The vitamin A concentration is displayed in μg RE/L (RE=retinol equivalent). It is used to measure vitamin A in vitamin premixes, sugar, flour, milk and biological fluids such as breast milk.
iCheck Fluoro measures vitamin A in food and biological sampels.
What is inside
iCheck Fluoro: Case Content
iCheck device
Rechargeable batteries & charger
USB -B cable for data transfer
Vial stand
Fluoro Standard
USB stick with User Manual
User Manual
Weighing dish
Calibration weight

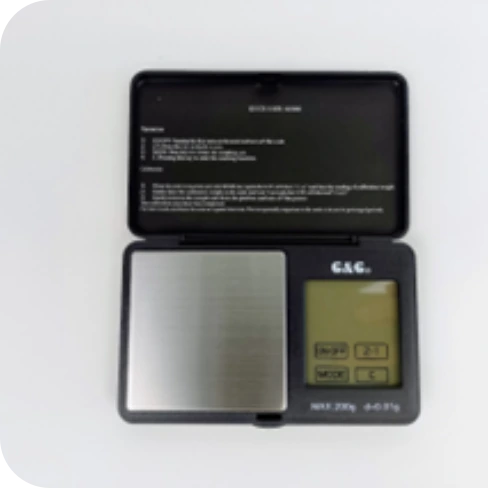

Balance
iCheck device
Rechargeable batteries & charger
USB -B cable for data transfer
Vial stand
Fluoro Standard
USB stick with User Manual
User Manual
Weighing dish
Calibration weight
Balance

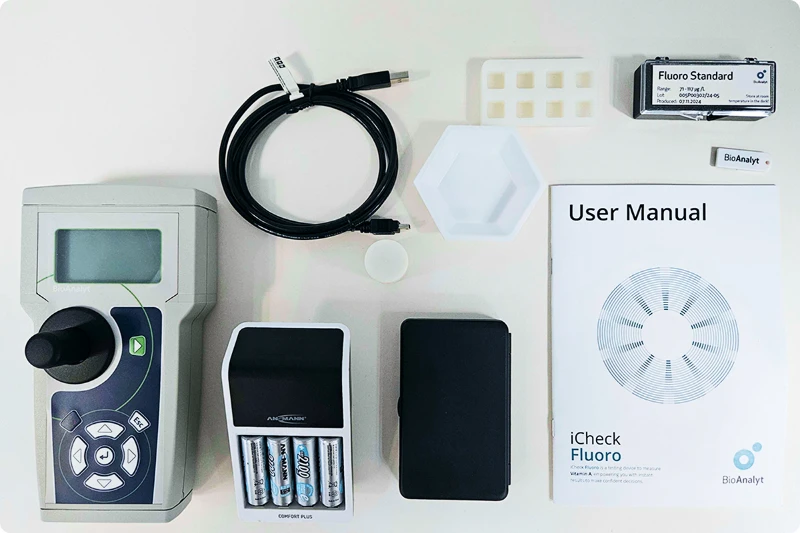

A – iCheck device, B – Rechargeable batteries & charger, C – USB -B cable for data transfer, D – Vial stand, E – Fluoro Standard, F – USB stick with User Manual, G – User Manual, H – Weighing dish, I – Calibration weight, J – Balance.

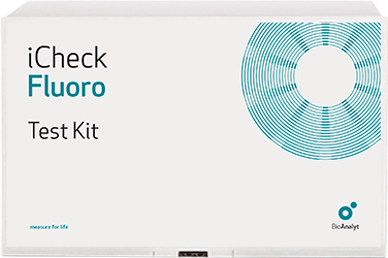

iCheck Fluoro: Test Kit Content
iCheck Fluoro Reagent Vials x 100
1 mL syringe x 100
Needle x 100
Vial labels/stickers
iCheck Fluoro Reagent Vials x 100
1 mL syringe x 100
Needle x 100
Vial labels/stickers

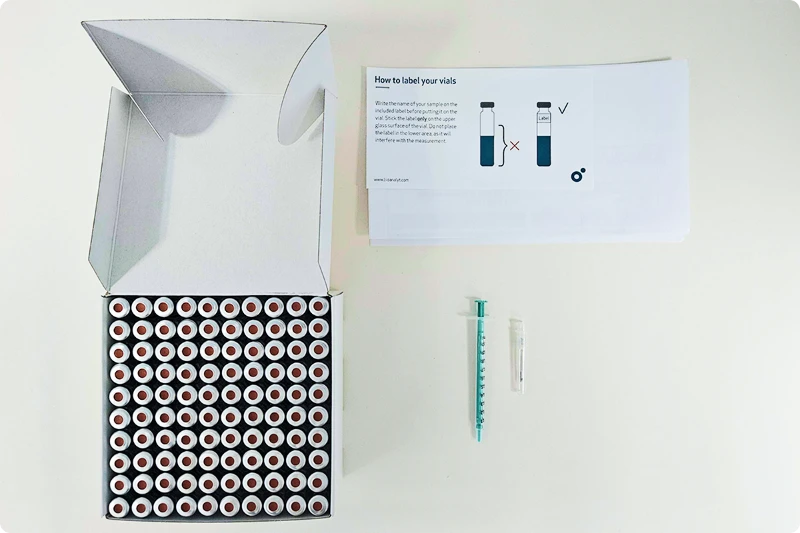

A – iCheck Fluoro Reagent Vials x 100, B – 1 mL syringe x 100, C – Needle x 100, D – Vial labels/stickers.
Technical Specifications
Sample
| Analyte | Vitamin A (retinol) as retinyl palmitate, retinyl acetate and other esters |
| Sample | Food: premix, liquid milk, milk powder, flour, sugar, bouillon powder; biological fluids: breast milk, whole blood, serum |
| Sample preparation | For solid samples: dilution and homogenization is distilled or bottled water |
| Sample volume per analysis | 0.5 mL (500 μL) |
| Concentration range | >0.05 ppm (mg/kg), samples above 3.0 ppm must be diluted in water |
Device
| Analytical method | Fluorimetric determination of retinol concentration using ultraviolate (UV) excitation |
| Units displayed | μg RE/L, RE – retinol equivalents, μg – microgramms |
| Linear range | 50–3000 μg RE/L |
| Calibration | Factory set (standards included for control) |
| Time per analysis | < 10 min |
| Enviroment | 20-30°C, no direct sunlight |
| Accuracy at 95% confidence interval at 25°C | ±5-25% (depends on the sample type) |
| Method comparison | High-performance liquid chromatography (HPLC) |
| User training | 1 day training |
| Use | Laboratory and field |
| Data output | Sample #, Batch #, Result, Date, Time (in transferred data) |
| Connectivity and data | Results are stored in the device and transferred to a PC via USB |
| Power source | NiMH rechargeable batteries included; AA 1.2 or 1.5V |
| Warranty | 2 years |
| Device weight | 0.45 kg |
| Device dimensions | 11 x 4 x 20 cm (W x H x L) |
Test Kit
| Content | 100 reagent vials; 100 syringes – 1.0 mL; 100 needles – 1.6mm x 25mm |
| Chemical composition | n-Hexan and alcohols |
| Volume per reagent vial | 2.0 mL |
| Shelf life | 12 months at 20-30°C, no direct sunlight, upright |
| Dimension of test kit | 26 x 14.5 x 16.5 cm |
| Disposable instructions | Hazardous waste |
| Optional equipment | Manual centrifuge, 50 mL falcons, weighing dishes, reference samples |
More Information
-
Assessment Download PDF
-
Fortified Bouillon Cubes & iCheck Download PDF
-
Fortified Flour & iCheck Download PDF
-
Fortified Rice Kernels & iCheck Download PDF
-
Fortified Sugar & iCheck Download PDF
-
Performance Guide Download PDF
-
Quick Guide Download PDF
-
User Manual Download PDF
-
Wheat and Maize Flour Guide Download PDF
-
Milk products & iCheck Download PDF
-
Product flyer Download PDF
-
Vitamin E, beta-carotene, and vitamin A in whole blood and plasma of dairy cattle Download PDF
-
FAQ Go to Page
Accessories
Manual Centrifuge
Portable manual hand centrifuge. Centrifuge is recommended when analyzing solid or dry samples such as flour or RUTF.
Training Kits
iCheck Fluoro Training Set
Training kit to get started with your iCheck Fluoro. Content: reagent vials (N=20), syringes and needles (N=20).
