iCheck Chroma 3

iCheck Chroma 3

iCheck Chroma 3™ is a state-of-the-art portable photometer for measuring vitamin A concentration in edible oil. The iCheck is specifically developed and equipped with innovative technology to enable technically sophisticated measurement of absorption. iCheck Chroma™ 3 displays vitamin A concentration in mg RE/kg and IU/g.

Get a Quote
iCheck Chroma 3 - vitamin A measurement device

iCheck Chroma 3 measures vitamin A in oil

iCheck Chroma 3

iCheck Device

Order Product
iCheck Chroma 3 Test Kit

iCheck Test Kit

Order Product

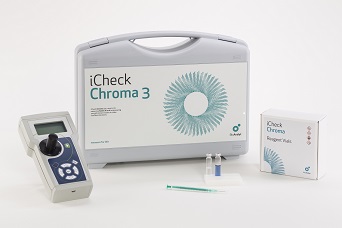

What is inside

iCheck Chroma 3: Case Content

A

iCheck device

B

Rechargeable batteries & charger

C

USB -B cable for data transfer

D

Vial stand

E

Chroma 3 Standard

F

USB stick with User Manual

G

User Manual

A

iCheck device

B

Rechargeable batteries & charger

C

USB -B cable for data transfer

D

Vial stand

E

Chroma 3 Standard

F

USB stick with User Manual

G

User Manual

A – iCheck device, B – Rechargeable batteries & charger, C – USB -B cable for data transfer, D – Vial stand, E – Chroma 3 Standard, F – USB stick with User Manual, G – User Manual.

Add To cart

iCheck Chroma 3: Test Kit Content

A

iCheck Chroma Reagent Vials x 100

B

1 mL syringe x 100

C

Needle x 100

A

iCheck Chroma Reagent Vials x 100

B

1 mL syringe x 100

C

Needle x 100

A – iCheck Chroma Reagent Vials x 100, B – 1 mL syringe x 100, C – Needle x 100.

Add To cart

Technical Specifications

Sample

AnalyteVitamin A (retinol) as retinyl palmitate
SampleRefined edible oils: palm, soy, cottonseed, sunflower, corn, peanut, rapeseed, coconut, rice bran
Sample preparationIf the oil is solid, warm it up to a maximum of 50°C to make it liquid
Sample volume per analysis0.1 mL (100μL)
Concentration range >3.0 ppm (mg/kg), samples above 30.0 ppm must be diluted in refined unfortified oil
Analytical method Photometric determination of retinol concentration using colorimetric Carr-Price reaction combined with compensation for matrix effect
Units displayed mg RE/kg and IU/g; RE – retinol equivalents, IU – international units
Linear range 3.00 – 30.00 mg RE/kg (10.00 – 100.00 IU/g)
CalibrationFactory set (standards included for control)
Time per analysis< 2 min
Enviroment20 –30°C, no direct sunlight
Accuracy at 95% confidence interval at 25°C <±30%
Method comparison High-performance liquid chromatography (HPLC)
User training 1 day training
UseLaboratory and field
Data output Sample #, Batch #, Result, Date, Time (in transferred data)
Connectivity and data Results are stored in the device and transferred to a PC via USB
NiMH rechargeable batteries included; AA 1.2 or 1.5V2 years
Warranty2 years
Device weight0.45 kg
Device dimensions11 x 4 x 20 cm (W x H x L)
Content100 reagent vials; 100 syringes – 1.0 mL; 100 needles – 0.8mm x 16mm.
Chemical compositionChloroform and antimony trichloride
Volume per reagent vial2.0 mL
Shelf life12 months at 20 – 30°C, no direct sunlight, upright
Dimension of test kit26 x 14.5 x 16.5 cm
Disposable instructionsHazardous waste
Optional equipment50 mL falcons, reference samples

More Information

iCheck Chroma 3

Please visit our Technical Resources page to access technical materials such as product information, preparation instructions, application materials, and publications.

Accessories

iCheck Chroma 3 Standard
Chroma 3 Standard

Solid grey-glass standard  for device control of iCheck Chroma 3. Standard is included with our iCheck device. In case it is lost or damaged it can be reordered separately.

iCheck Chroma 3 Training set
iCheck Chroma 3 Training Set
Training kit to get started with your iCheck Chroma 3. Content: reagent vials (N=20), syringes and needles (N=20).
Control samples
Spiked control samples

Food samples spiked with customized concentration of vitamins and minerals according to customer specification.

Vial stand
Vials stand

Vial stand for holding eight iCheck reagent vials.

Charger and Batteries
Charger and batteries

Charger and four 2100 mAh  rechargeable.

Technical Information
Hamilton syringe
Hamilton syringe

Steel and glass reuseable Hamilton 100 µl syringe with removable needle.

Weighing balance
Balance

Portable, battery-run balance. Lowest weight and resolution 0.01 g, maximum weight 200 g. Comes with 100g calibration weight

USB-B cable
USB-B cable

USB-B cable for data transfer of measurement results from iCheck to computer.
